Description

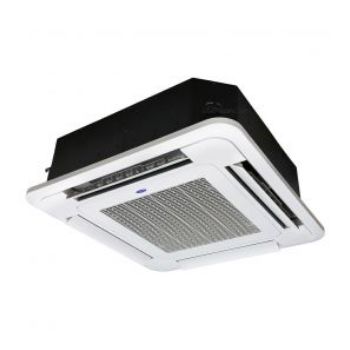

The Carrier Cassette Fixed Speed AC delivers four-way air distribution from a discreet ceiling-mounted unit, ensuring even, comfortable cooling and heating throughout the space. Ideal for
commercial and open-plan environments. Six capacity options cover rooms from 16 m² to 107 m².
Available Capacities & Coverage
| Model (Indoor / Outdoor) |
Capacity |
Application Area |
Power Supply |
| 42QTD012NS-2 / 38QUS012NS-2 |
12,000 BTU |
16 – 23 m² |
220–240V, 1Ph, 50Hz |
| 42QTD018NS-2 / 38QUS018NS-2 |
18,000 BTU |
24 – 35 m² |
220–240V, 1Ph, 50Hz |
| 42QTD024NSX / 38QUS024NS-2 |
24,000 BTU |
32 – 47 m² |
220–240V, 1Ph, 50Hz |
| 42QTD036NSX / 38QUS036NT-2 |
36,000 BTU |
48 – 70 m² |
380–415V, 3Ph, 50Hz |
| 42QTD048NSX / 38QUS048NT-2 |
48,000 BTU |
64 – 94 m² |
380–415V, 3Ph, 50Hz |
| 42QTD060NSX / 38QUS060NT-2 |
55,000 BTU |
73 – 107 m² |
380–415V, 3Ph, 50Hz |
Technical Specifications – 12,000 BTU (42QTD012NS-2)
| Cooling |
| Cooling Capacity |
12,000 BTU (3,517 W) |
| Input |
1,095 W |
| Current |
4.8 A |
| EER |
3.21 |
| Heating |
| Heating Capacity |
13,000 BTU (3,810 W) |
| Input |
1,180 W |
| Current |
5.3 A |
| COP |
3.23 |
| General |
| Rated Power Input |
1,650 W |
| Rated Current |
8.0 A |
| Indoor Air Flow (Hi/Mi/Lo) |
612 / 477 / 388 m³/h |
| Indoor Noise Level (Hi/Mi/Lo) |
41 / 36 / 33 dB(A) |
| Indoor Unit Dimensions (W×D×H) |
570 × 570 × 260 mm |
| Indoor Unit Weight (Net/Gross) |
15.0 / 17.8 kg |
| Outdoor Air Flow |
2,500 m³/h |
| Outdoor Noise Level |
55 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
805 × 330 × 554 mm |
| Outdoor Unit Weight (Net/Gross) |
32.3 / 34.9 kg |
| Refrigerant |
R410A / 0.85 kg |
| Max Pipe Length |
15 m |
| Max Level Difference |
8 m |
| Application Area |
16 – 23 m² |
| Operation Temperature |
17 – 30°C |
| Power Supply |
220–240V, 1Ph, 50Hz |
Technical Specifications – 18,000 BTU (42QTD018NS-2)
| Cooling |
| Cooling Capacity |
18,000 BTU (5,275 W) |
| Input |
1,920 W |
| Current |
8.5 A |
| EER |
2.75 |
| Heating |
| Heating Capacity |
19,000 BTU (5,569 W) |
| Input |
1,700 W |
| Current |
7.5 A |
| COP |
3.28 |
| General |
| Rated Power Input |
2,900 W |
| Rated Current |
15.0 A |
| Indoor Air Flow (Hi/Mi/Lo) |
730 / 570 / 470 m³/h |
| Indoor Noise Level (Hi/Mi/Lo) |
45 / 42 / 38 dB(A) |
| Indoor Unit Dimensions (W×D×H) |
570 × 570 × 260 mm |
| Indoor Unit Weight (Net/Gross) |
16.4 / 19.4 kg |
| Outdoor Air Flow |
2,500 m³/h |
| Outdoor Noise Level |
58.5 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
805 × 330 × 554 mm |
| Outdoor Unit Weight (Net/Gross) |
37.8 / 40.4 kg |
| Refrigerant |
R410A / 1.3 kg |
| Max Pipe Length |
25 m |
| Max Level Difference |
15 m |
| Application Area |
24 – 35 m² |
| Operation Temperature |
17 – 30°C |
| Power Supply |
220–240V, 1Ph, 50Hz |
Technical Specifications – 24,000 BTU (42QTD024NSX)
| Cooling |
| Cooling Capacity |
24,000 BTU (7,034 W) |
| Input |
2,417 W |
| Current |
10.6 A |
| EER |
2.91 |
| Heating |
| Heating Capacity |
26,000 BTU (7,620 W) |
| Input |
2,200 W |
| Current |
9.6 A |
| COP |
3.46 |
| General |
| Rated Power Input |
3,700 W |
| Rated Current |
18.0 A |
| Indoor Air Flow (Hi/Mi/Lo) |
1,300 / 1,000 / 820 m³/h |
| Indoor Noise Level (Hi/Mi/Lo) |
45.5 / 40 / 37.5 dB(A) |
| Indoor Unit Dimensions (W×D×H) |
830 × 830 × 205 mm |
| Indoor Unit Weight (Net/Gross) |
22.2 / 26.2 kg |
| Outdoor Air Flow |
3,650 m³/h |
| Outdoor Noise Level |
60 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
890 × 342 × 673 mm |
| Outdoor Unit Weight (Net/Gross) |
52.9 / 55.9 kg |
| Refrigerant |
R410A / 2.0 kg |
| Max Pipe Length |
25 m |
| Max Level Difference |
15 m |
| Application Area |
32 – 47 m² |
| Operation Temperature |
17 – 30°C |
| Power Supply |
220–240V, 1Ph, 50Hz |
Technical Specifications – 36,000 BTU (42QTD036NSX)
| Cooling |
| Cooling Capacity |
36,000 BTU (10,551 W) |
| Input |
3,600 W |
| Current |
6.5 A |
| EER |
2.93 |
| Heating |
| Heating Capacity |
38,000 BTU (11,137 W) |
| Input |
3,600 W |
| Current |
6.5 A |
| COP |
3.09 |
| General |
| Rated Power Input |
4,250 W |
| Rated Current |
7.0 A |
| Indoor Air Flow (Hi/Mi/Lo) |
1,960 / 1,660 / 1,400 m³/h |
| Indoor Noise Level (Hi/Mi/Lo) |
52 / 48 / 45 dB(A) |
| Indoor Unit Dimensions (W×D×H) |
830 × 830 × 245 mm |
| Indoor Unit Weight (Net/Gross) |
26.1 / 30.0 kg |
| Outdoor Air Flow |
3,800 m³/h |
| Outdoor Noise Level |
62.5 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
946 × 410 × 810 mm |
| Outdoor Unit Weight (Net/Gross) |
73.0 / 77.5 kg |
| Refrigerant |
R410A / 2.85 kg |
| Max Pipe Length |
30 m |
| Max Level Difference |
20 m |
| Application Area |
48 – 70 m² |
| Operation Temperature |
17 – 30°C |
| Power Supply |
380–415V, 3Ph, 50Hz |
Technical Specifications – 48,000 BTU (42QTD048NSX)
| Cooling |
| Cooling Capacity |
48,000 BTU (14,068 W) |
| Input |
5,191 W |
| Current |
9.2 A |
| EER |
2.71 |
| Heating |
| Heating Capacity |
52,000 BTU (15,240 W) |
| Input |
4,763 W |
| Current |
8.5 A |
| COP |
3.20 |
| General |
| Rated Power Input |
6,300 W |
| Rated Current |
11.0 A |
| Indoor Air Flow (Hi/Mi/Lo) |
1,916 / 1,780 / 1,620 m³/h |
| Indoor Noise Level (Hi/Mi/Lo) |
54 / 52 / 50 dB(A) |
| Indoor Unit Dimensions (W×D×H) |
830 × 830 × 245 mm |
| Indoor Unit Weight (Net/Gross) |
28.3 / 32.3 kg |
| Outdoor Air Flow |
6,000 m³/h |
| Outdoor Noise Level |
62 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
900 × 350 × 1,170 mm |
| Outdoor Unit Weight (Net/Gross) |
98.6 / 109.3 kg |
| Refrigerant |
R410A / 3.3 kg |
| Max Pipe Length |
50 m |
| Max Level Difference |
30 m |
| Application Area |
64 – 94 m² |
| Operation Temperature |
17 – 30°C |
| Power Supply |
380–415V, 3Ph, 50Hz |
Technical Specifications – 55,000 BTU (42QTD060NSX)
| Cooling |
| Cooling Capacity |
55,000 BTU (16,120 W) |
| Input |
6,270 W |
| Current |
11.0 A |
| EER |
2.57 |
| Heating |
| Heating Capacity |
61,000 BTU (17,878 W) |
| Input |
5,800 W |
| Current |
10.2 A |
| COP |
3.08 |
| General |
| Rated Power Input |
7,500 W |
| Rated Current |
12.6 A |
| Indoor Air Flow (Hi/Mi/Lo) |
2,100 / 1,920 / 1,730 m³/h |
| Indoor Noise Level (Hi/Mi/Lo) |
54.0 / 51.5 / 48.0 dB(A) |
| Indoor Unit Dimensions (W×D×H) |
830 × 830 × 287 mm |
| Indoor Unit Weight (Net/Gross) |
30.5 / 34.5 kg |
| Outdoor Air Flow |
6,500 m³/h |
| Outdoor Noise Level |
61.5 dB(A) |
| Outdoor Unit Dimensions (W×D×H) |
900 × 350 × 1,170 mm |
| Outdoor Unit Weight (Net/Gross) |
99.7 / 111.2 kg |
| Refrigerant |
R410A / 3.3 kg |
| Max Pipe Length |
50 m |
| Max Level Difference |
30 m |
| Application Area |
73 – 107 m² |
| Operation Temperature |
17 – 30°C |
| Power Supply |
380–415V, 3Ph, 50Hz |
